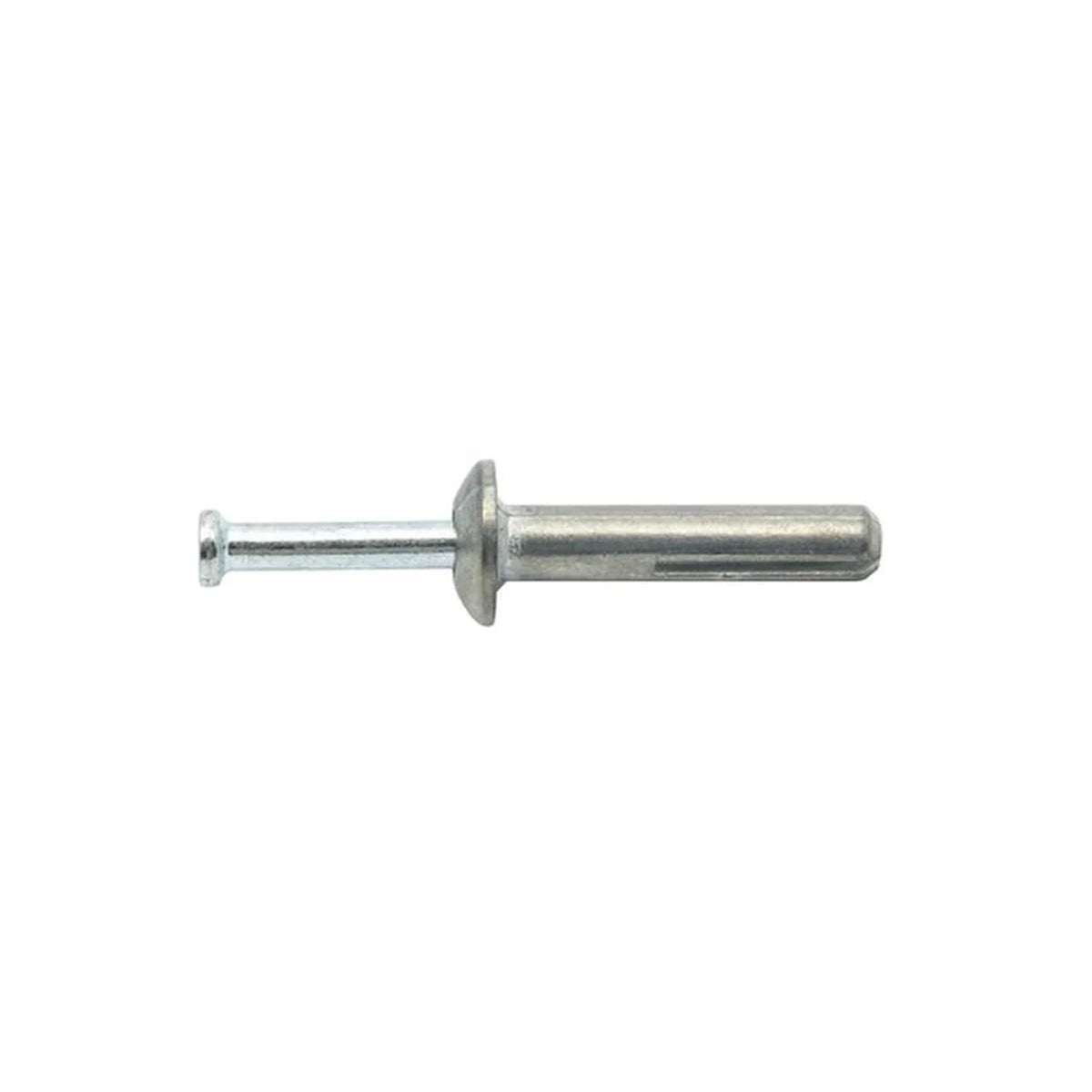

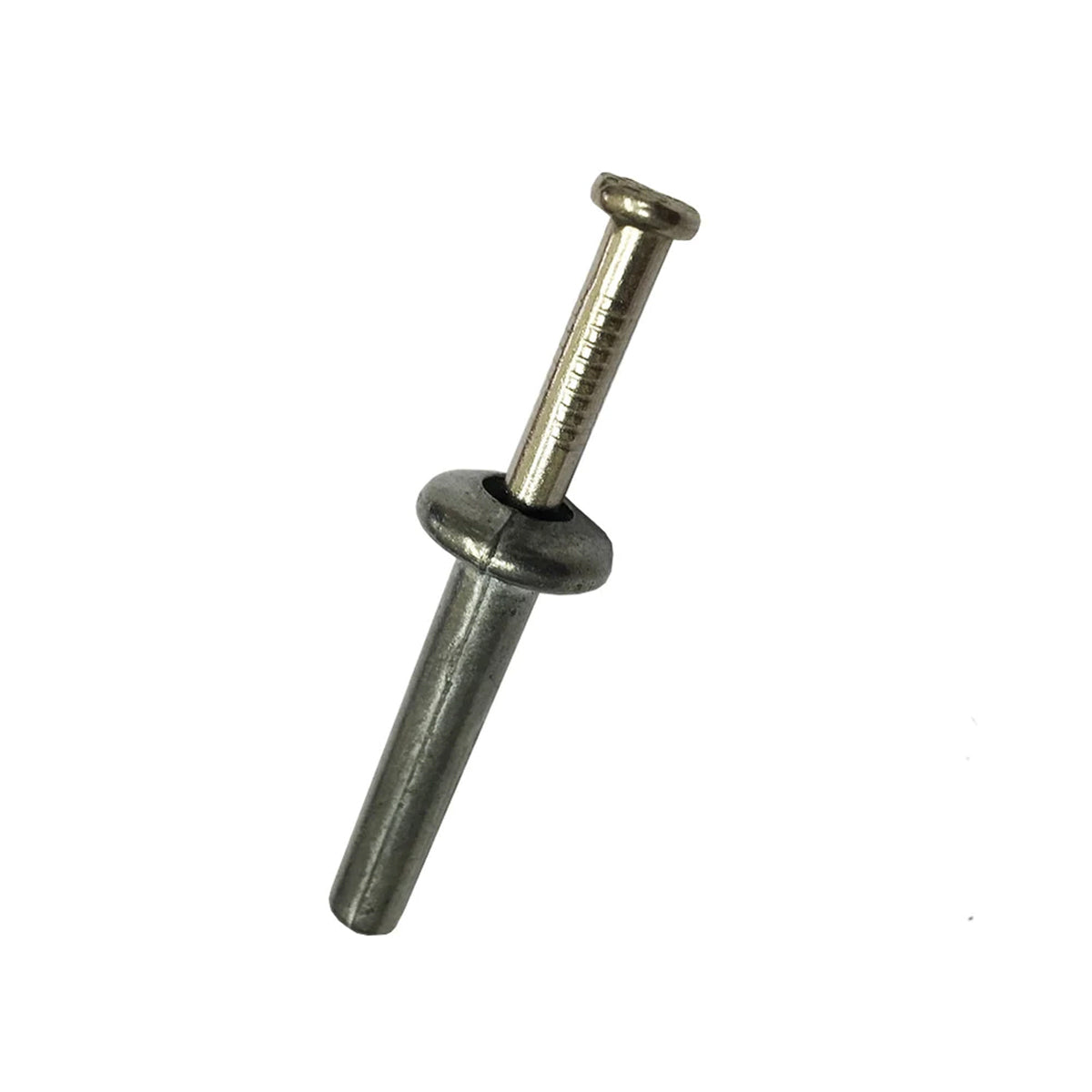

With a rugged alloy body and stainless steel pin, these heavy duty, impact setting, interference fit anchors, are designed for tamper resistant use in a variety of substrates such as concrete, stone, solid brick, solid block, hollow brick, hollow block and hollow slab.
FEATURES:

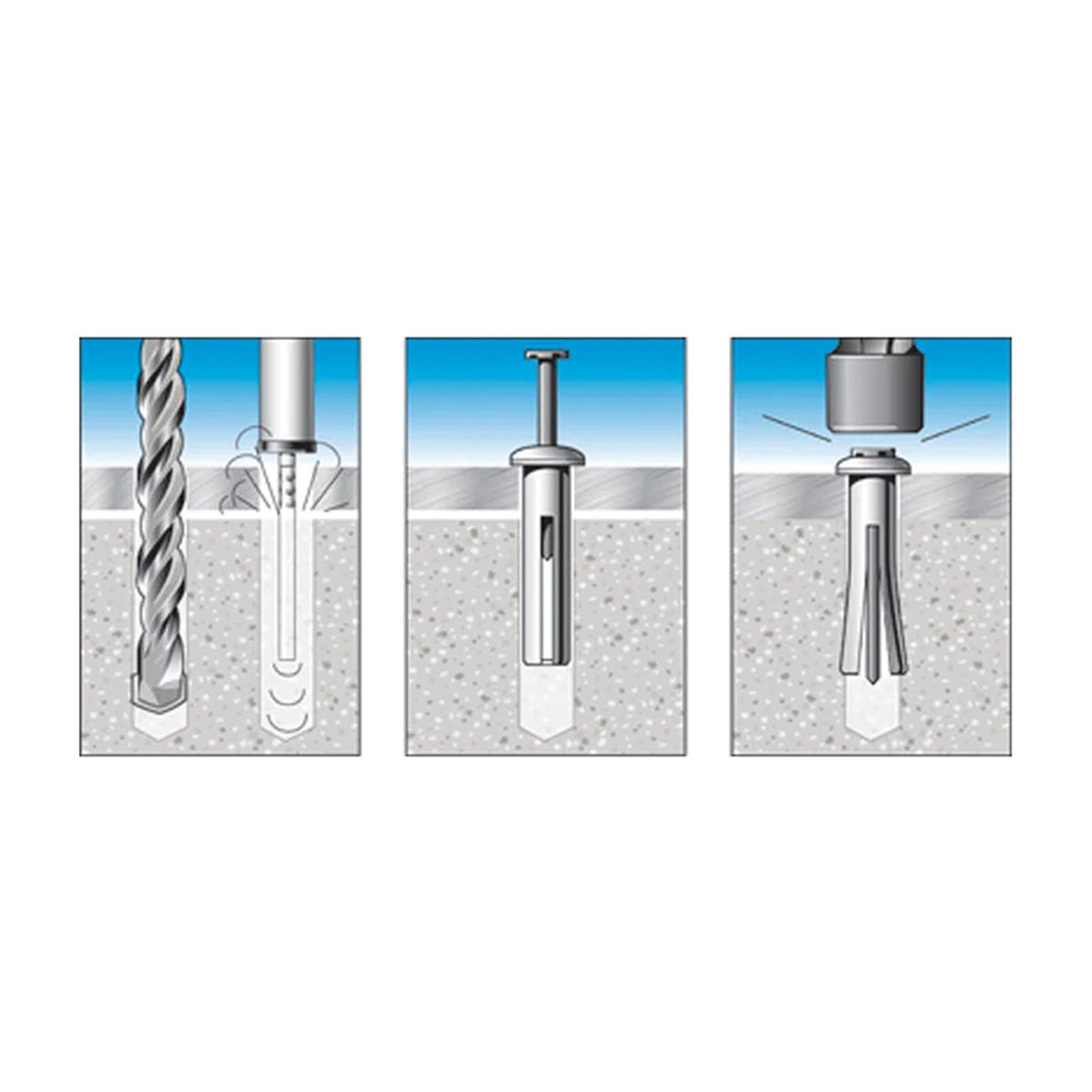

Hammer-in method makes installation quick and easy

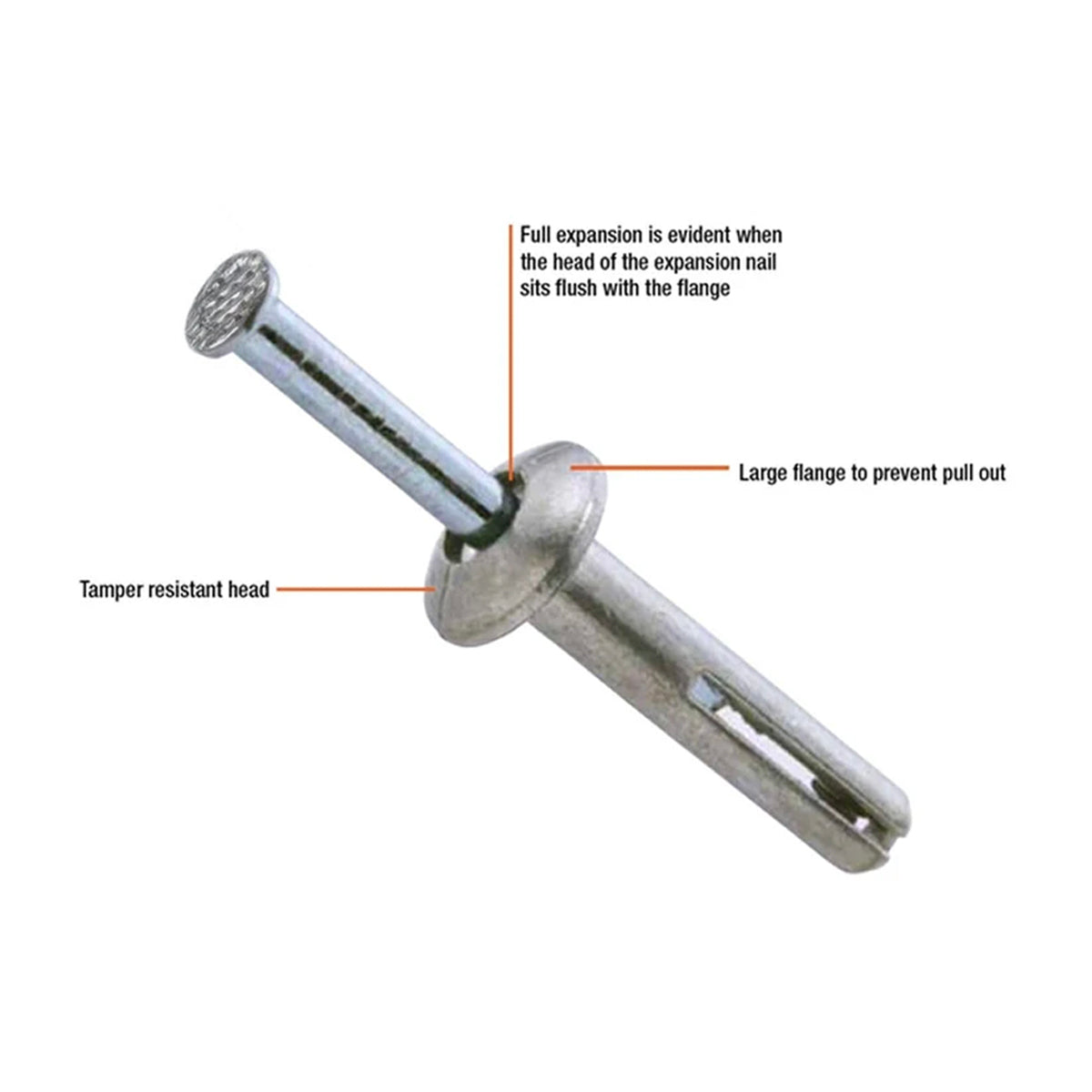

Full expansion of the anchor is evident when the head of the expansion nail sits flush with the flange
Once fully set, the fixture becomes tamper resistant
The anchor’s large flange prevents pullout
Tread nail head
Ribbed nail shank for better grip in the anchor
SPECIFICATIONS:
Anchor Shank Diameter: 6.5mm
Anchor Shank Length: 32mm (excluding head)
Anchor Head Diameter: 13mm
Nail Head Diameter: 6mm
Minimum Hole Depth: 35mm
Drill Hole Diameter: 6.5mm (1/4")
Metal: 304 Stainless steel nail in a zinc alloy anchor
