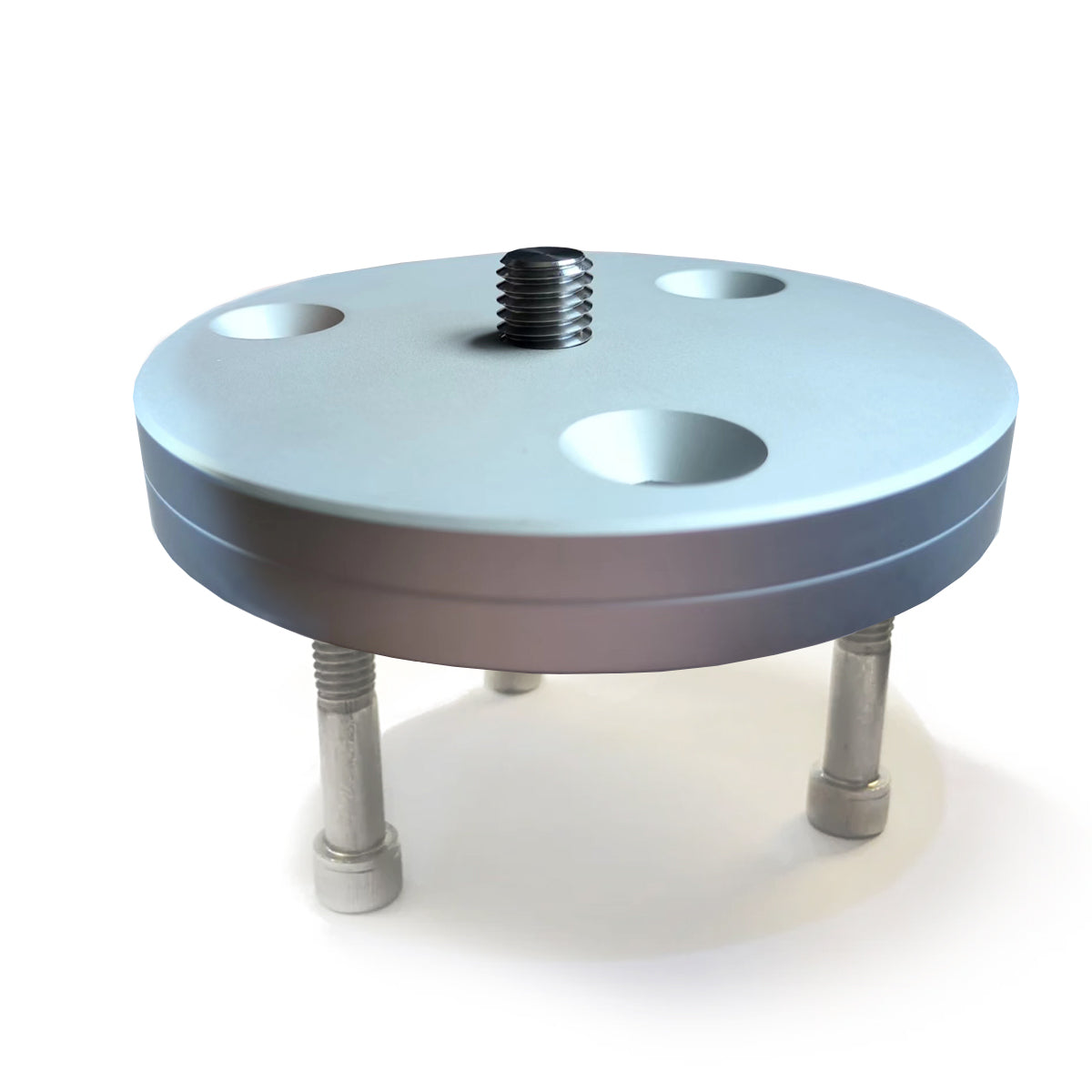

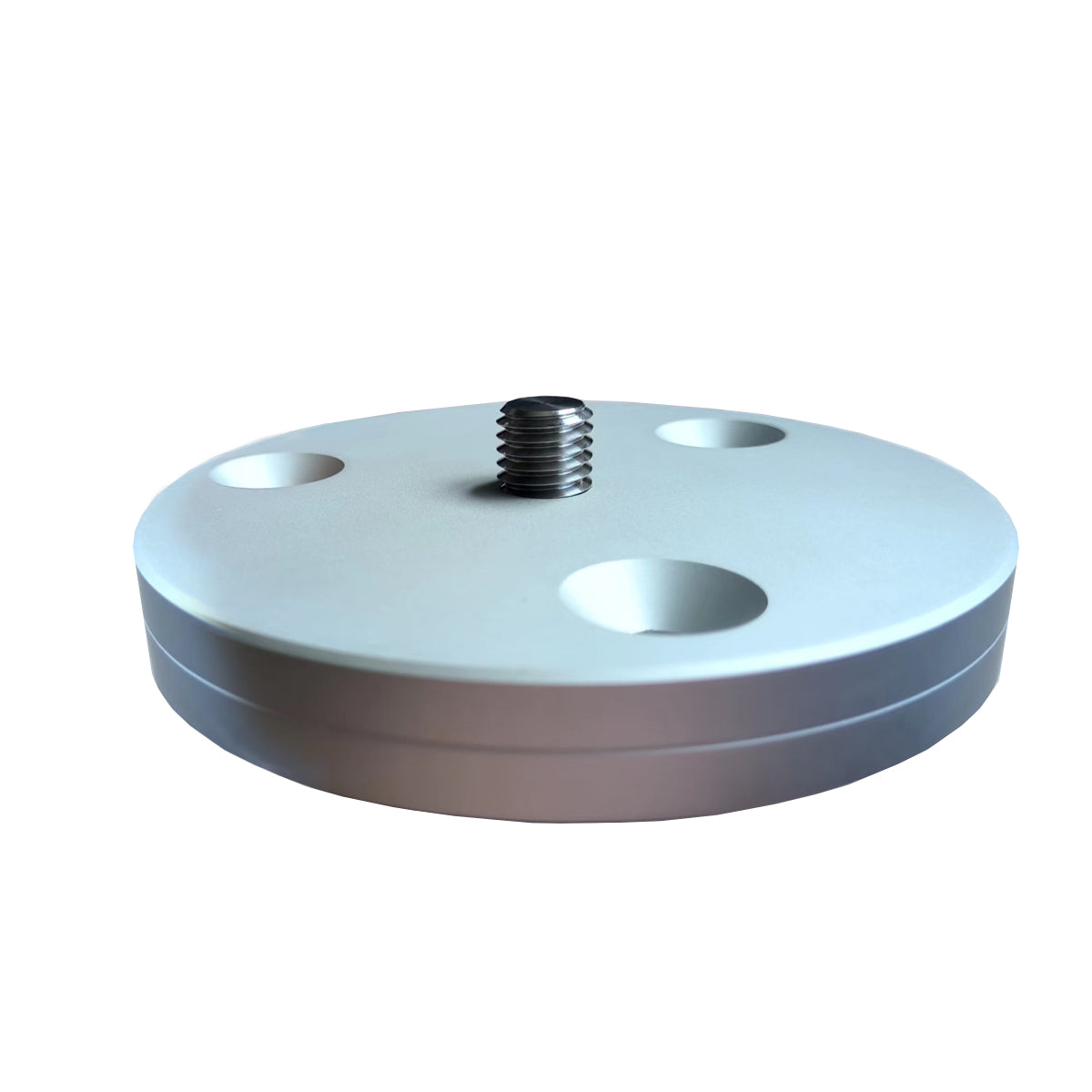

Anodised aluminium plate with two ways to mount. Countersunk screw mounting holes in the top and threaded holes for anchor studs in the bottom. Designed for column mounting installation, to create stable monument monitoring positions which you can place total stations, GPS, prisms etc. on, for repeatable monitoring.
INCLUDES:
Anodised aluminium body with 5/8 thread
FEATURES:
Features an anodised aluminium body
3 threaded stud holes for 8x70mm Stainless Bolts (not included)
3 countersunk through-holes for alternative mounting option
5/8 x 11 threaded stud
SPECIFICATIONS:
Top Thread: 5/8 x 11 male
Bottom Threads: M8x1.25
Plate Dimensions: 140mm x 19mm (excluding 5/8 thread)
